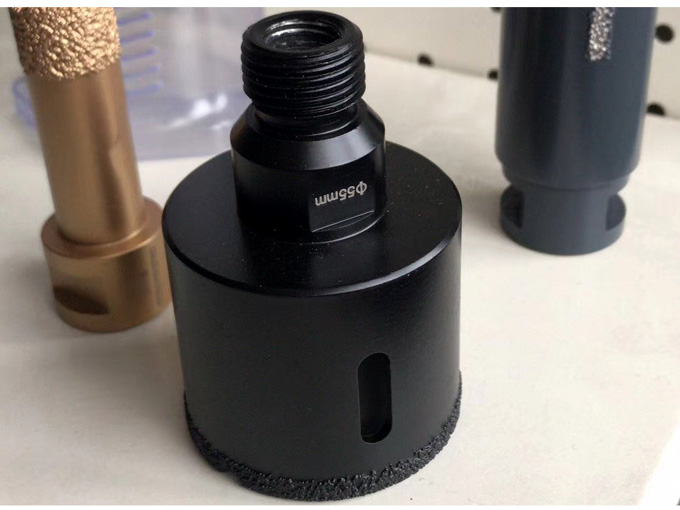

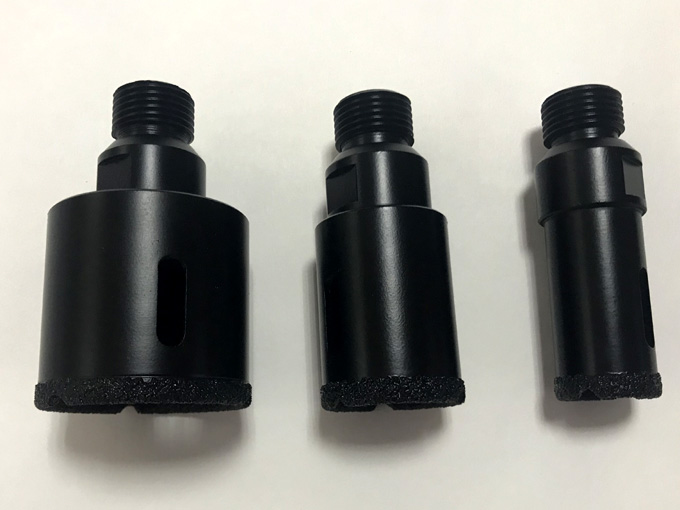

Brazed Diamond Hole Saw ( external thread)

Brazed Diamond Hole Saw ( external thread)
Product name : Brazed Diamond Hole Saw ( external thread)
Item : BHD-9
Details :
Diamond Height Diameter Working Depth Total Length cooling Lubricant Processing Method
10mm 5mm 35mm 62mm Yes Dry cutting
10mm 6mm 35mm 62mm Yes Dry cutting
10mm 8mm 35mm 62mm Yes Dry cutting
10mm 8mm 35mm 62mm Yes Dry cutting
10mm 10mm 35mm 62mm Yes Dry cutting
10mm 12mm 35mm 62mm Yes Dry cutting
10mm 14mm 35mm 62mm Yes Dry cutting
10mm 15-120mm 40mm 60mm No Dry cutting

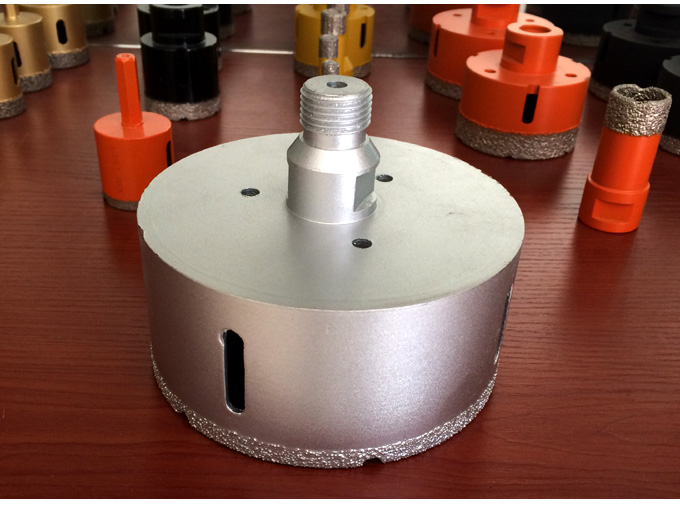

Vacuum Brazed Diamond Hole Saw:


Technology: Take use of the melting point of solder is lower than the parent metal, melting solder and wetting parent metal, and densely filling the soldering seam, solder and parent metal bonding each other, formed a strong connection

Characteristic: Sharp, better abrasion resistance, strong bonding, not easy to spall off

Application: Use for grinding different kind of glass, granite, marble and other stone; wall brick and floor tile, sanitary ware, ceramic handle, and some metal products, such as aluminum, stainless steel, etc

The grinding efficiency of brazed diamond tools is 3 times more than electroplating tools, is 3-5 times more than the diamond sintered product. The service life is 3 times more than the electroplating tools. The diamond of brazed tools does not fall off after working; it can keep the surface morphology.



Size: 6-120mm diameter, the handle can be customized according to customer requirements, the common handle comprises: round handle, hexagon handle, quick joint handle, internal thread type and external thread type.

OEM, ODM available.
