Brazed Milling cutter

Brazed Milling cutter

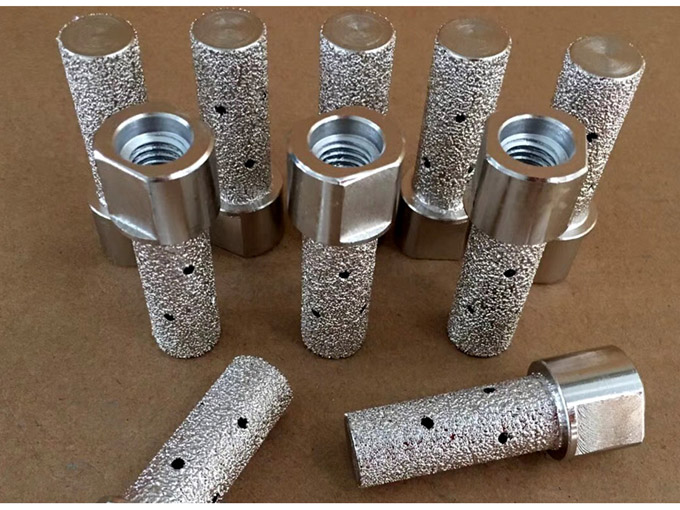

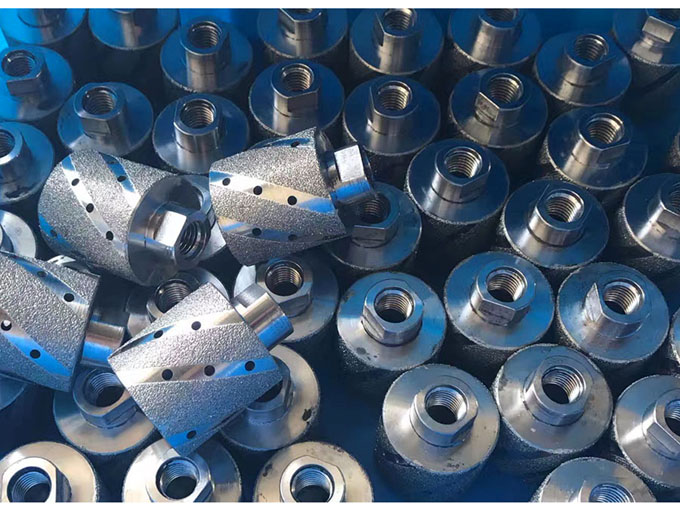

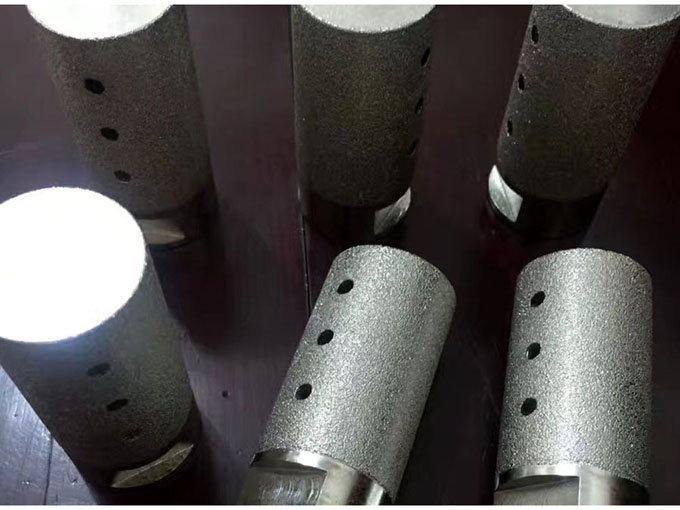

Product name : Brazed Milling cutter
Item : BHM-7 series
Details :

Technology: Take use of the melting point of solder is lower than the parent metal, melting solder and wetting parent metal, and densely filling the soldering seam, solder and parent metal bonding each other, formed a strong connection.


Application: Use for grinding different kind of glass, granite, marble and other stone; wall brick and floor tile, sanitary ware, ceramic handle, and some metal products, such as aluminum, stainless steel, etc.


Regular specifications of milling cutter are as follows: ∮25×50mm, ∮50×50mm,∮75×50,∮100×50. There're three kinds of shanks include female thread M14 or M5/8”, Male thread is G1/2” gas thread and round handle M6/8/10mm. The range of grit includes #30/#50/#100 or other size. Special specifications can be made according to customers’ demand.


The grinding efficiency of brazed diamond tools is 3 times more than electroplating tools, is 3-5 times more than the diamond sintered product. The service life is 3 times more than the electroplating tools. The diamond of brazed tools does not fall off after working; it can keep the surface morphology.


It is mainly used for milling the inner side of stones, the handle can be customized according to customer requirements, the common handle comprises: round handle, hexagon handle, quick joint handle, internal thread type and external thread type.
