Brazed Milling Cutter

Brazed Milling Cutter
Product name : Brazed Milling Cutter
Item : BHM series
Details :

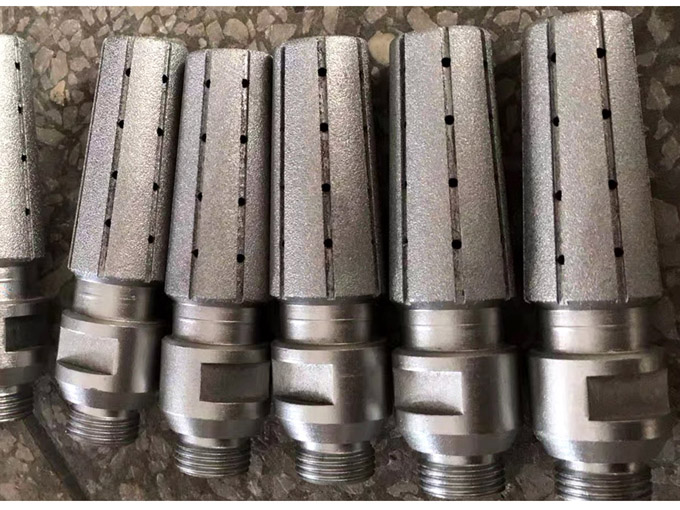

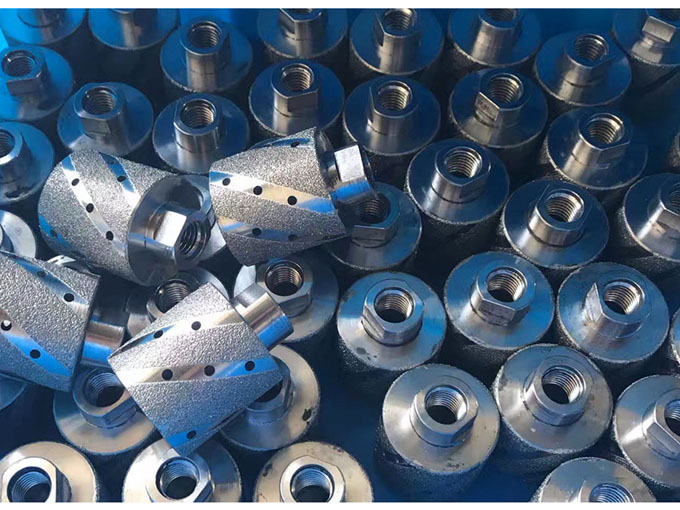

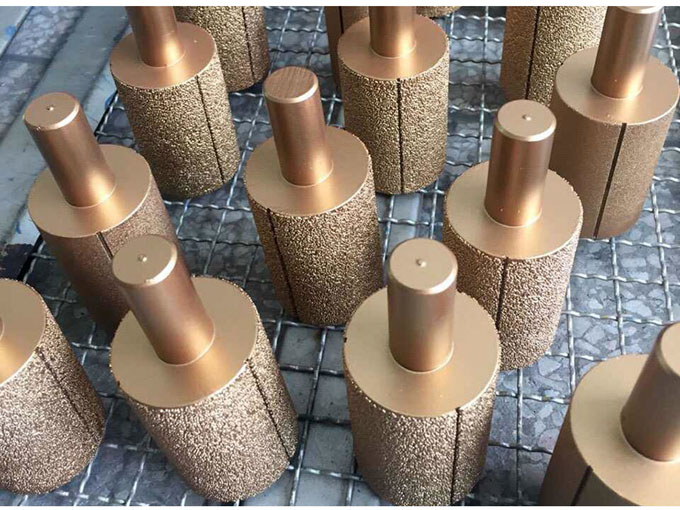

Vacuum Brazed Diamond Milling Cutter:

Technology: Take use of the melting point of solder is lower than the parent metal, melting solder and wetting parent metal, and densely filling the soldering seam, solder and parent metal bonding each other, formed a strong connection

Characteristic: Sharp, better abrasion resistance, strong bonding, not easy to spall off.

Application: Use for grinding different kind of glass, granite, marble and other stone; wall brick and floor tile, sanitary ware, ceramic handle, and some metal products, such as aluminum, stainless steel, etc

The grinding efficiency of brazed diamond tools is 3 times more than electroplating tools, is 3-5 times more than the diamond sintered product. The service life is 3 times more than the electroplating tools. The diamond of brazed tools does not fall off after working; it can keep the surface morphology.

It is mainly used for milling the inner side of stones, the handle can be customized according to customer requirements, the common handle comprises: round handle, hexagon handle, quick joint handle, internal thread type and external thread type.

OEM, ODM available.
