Bullet Shaped Mounted Point

Bullet Shaped Mounted Point
Product name : Bullet Shaped Mounted Point
Item : EGS3300
Details :

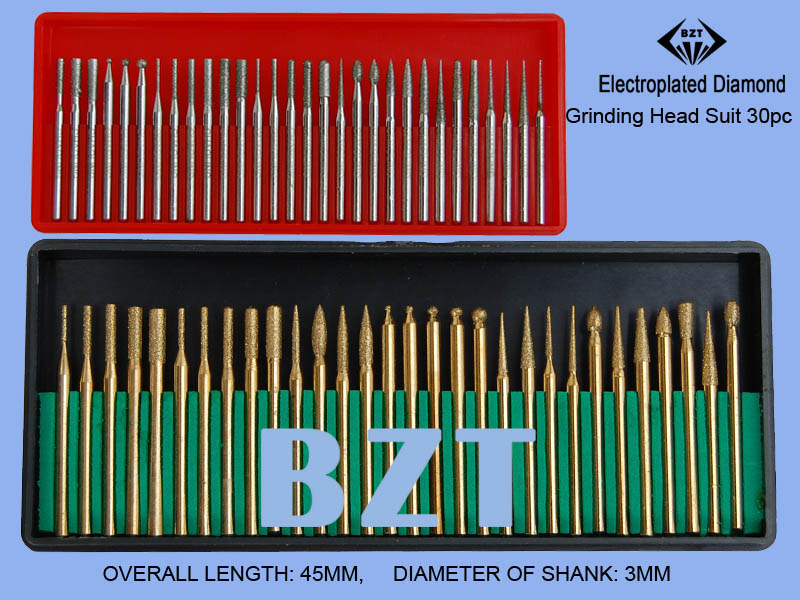

 Diamond electroplated grinding head/mounted point:
Technology: let diamond grit adsorb on the head of the primary structure(45 steel) via electroplating.
Features: wear-resistant, diamond grit on the surface place closely, not easy to fall off, maintain sharpness, long wear.
Surface smoothness: primary structure nicked-plate, bright and high smooth finish; the surface smoothness of grinding head part is decided by diamond grit, the smaller the grit, the better the smooth finish.
Application:
(1)For grinding various glasses, grit from 80 to 150, no chipping, fast, the surface of the glass is smooth after polishing.
(2)For cutting and grinding granite, basalt, limestone, dolomite, sandstone, marble and other stones, grit from 36 to 60, sharp enough, fast, long working life, no chipping. Stone surface is smooth after polishing.
(3)For grinding wall tiles, floor tiles, sanitary wares, ceramic handles, silicon, grit from 60 to 80, sharp, long working life, no chipping. The surface of ceramic products is smooth after grinding.
(4)For polishing other metal products, such as aluminum, stainless steel. If polish fast steel and tungsten steel, CBN grit needs to be customized because it's sharper.
Sizes: 3*3, 3*6, 6*6, 6*8, 6*10, various shapes, can be customized according to customers' drawings.
