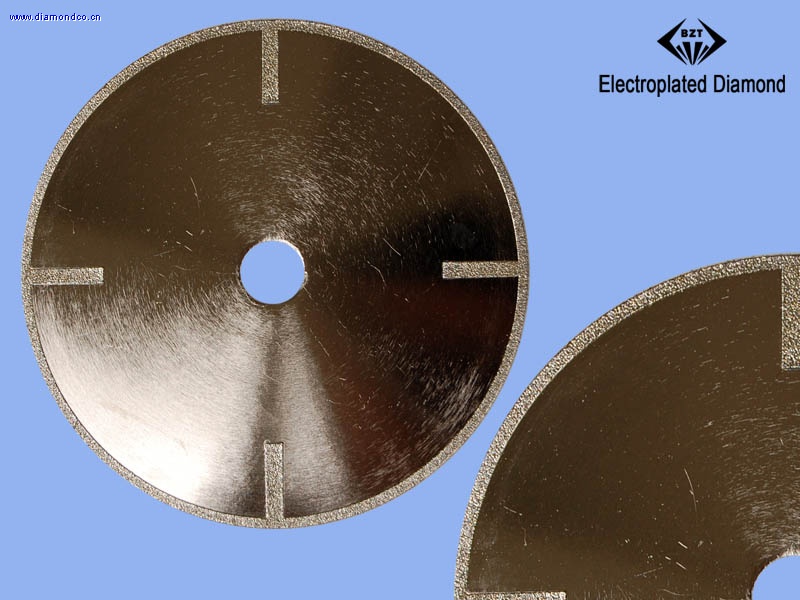

Electroplated diamond saw blade:
Electroplated diamond saw blade is used for cutting glass, granite, marble, quartz stone, ceramic, resin, magnetic material, hard alloy, concrete, cast iron etc.
The base material of the blade is special steel. The diamond grit is decided by the cutting material. 80-150 grit for glass; 80-120 grit for wall tile, floor tile, sanitary ware, ceramic, silicon chip and products with silicate; 36-60 grit for granite, basalt, limestone, dolomite, sandstone and marble.
Product specification: outer diameter is from 100mm to 700mm, hole diameter include 16, 20, 22, 22.23, 23, 25.4mm. The thickness of common used blade is from 1.2mm to 3mm. The blade can be divided into two types: continuous type (sand ring) and open type (U shape, keyhole shape and teeth type)
Angle grinder, marble machine(portable small cutting machine), sawing machine and DPS-AZ are suitable for the blade. Maximum line speed is 14000RMP. We can also produce rare size products according to your drawings.
| DIAMENT |
HOLE |
THICKNESS |
WIDTH |
Range of Grit |
| Ф100 |
20 |
1 |
6mm |
60# |
| Ф105 |
20 |
1 |
6mm |
60# |
| Ф110 |
20 |
1.2 |
6mm |
60# |
| Ф115 |
20 |
1.2 |
6mm |
60# |
| Ф125 |
20 |
1.2 |
6mm |
60# |
| Ф180 |
20 |
1.6 |
6mm |
60# |
| Ф230 |
20 |
1.6 |
6mm |
60# |
