Sculpture Grinding Head- BGS1000

Sculpture Grinding Head- BGS1000 Sculpture Grinding Head- BGS1000
Product name : Sculpture Grinding Head- BGS1000
Item : BGS1000 SERIES
Details :

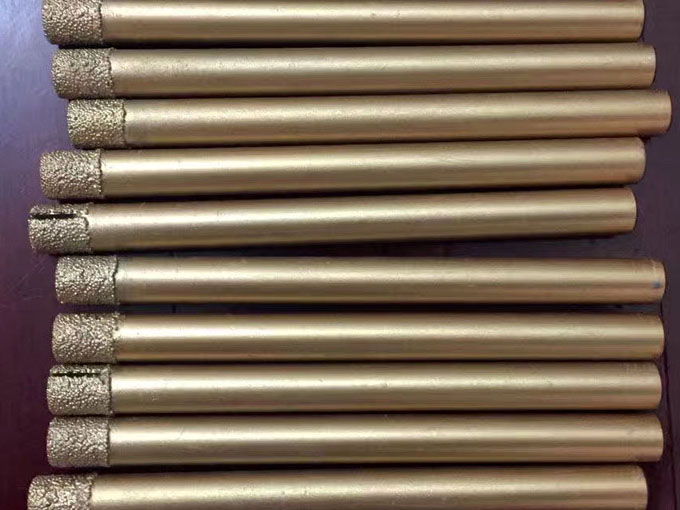

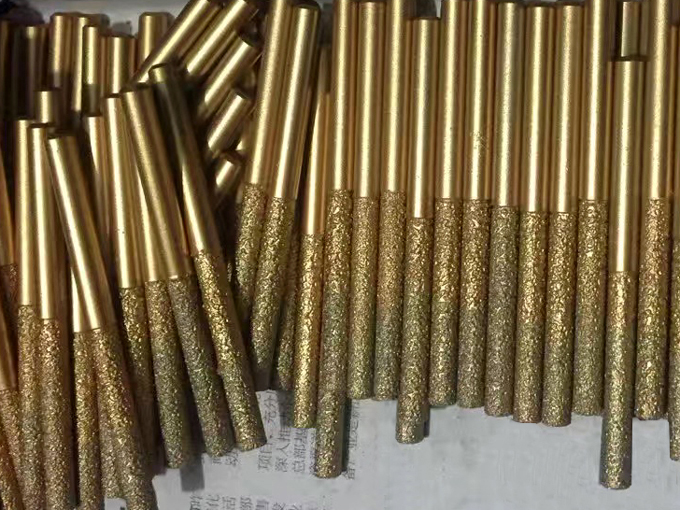

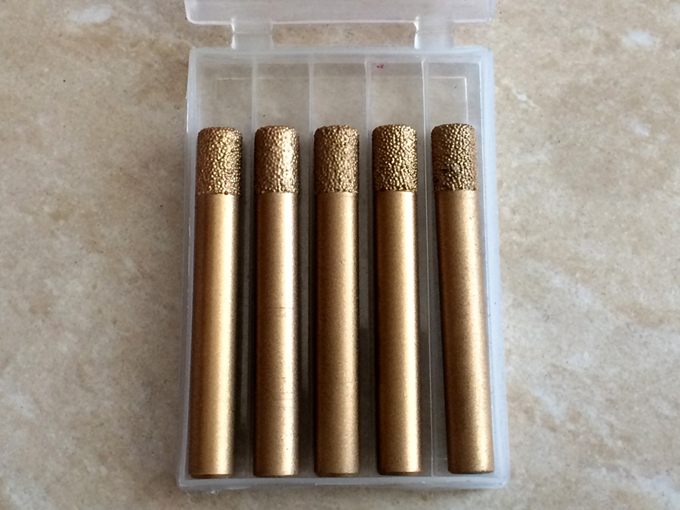

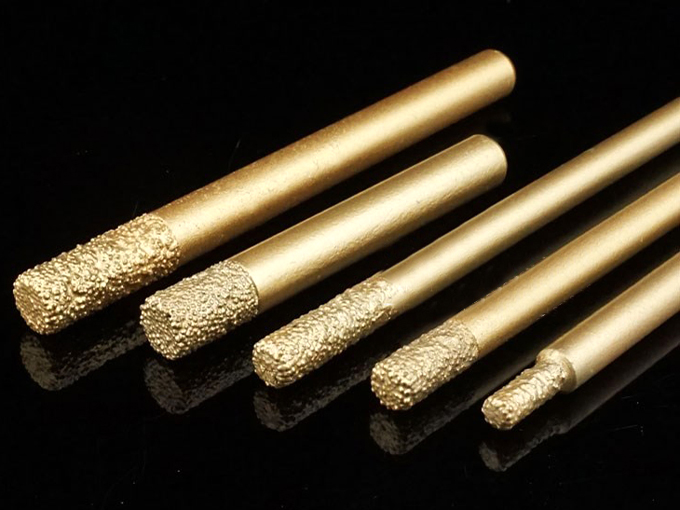

 Vacuum brazed diamond sculpturing head is used for cutting and grinding marble, granite, artificial stone, ceramic tile, jade etc., also can be used for cemented carbide, cast iron, resin, magnetic material, glass and other materials. It is an excellent grinding tool with handle that for grinding small area or grinding small areas into fragments. It can be used for grinding surfaces like inner circle, fillet, groove, camber, and cone.
Application: lettering, relief, polish, carving patterns, cut lines, hollow and mill.
Equipment: CNC engraving machine, electric grinding machine, flexible shaft machine, electric hand drill etc.

Commonly used sizes of sculpturing head are as below:
Ф6*10(or 15mm or 20mm)*60(or 90mm)
Ф8*10(or 15mm or 20mm or 25mm)*60(or 90mm)
Ф10*10(or 15mm or 20mm or 25mm)*60(or 90mm)
Ф12*10(or 15mm or 20mm or 25mm or 30mm)*60(or 90mm or 120mm)
But customers will have specific requirements about the sizes in real orders. Of course, it’s very easy for us to achieve the requirements of the customers. Different diameter and diamond grit length have a big impact on the price. For same diameter and diamond grit length sculpturing head, the impact of different overall lengths is small.
