Taper 60° (shape J)

Taper 60° (shape J)
Product name : Taper 60° (shape J)
Item : Rotary Burrs - J
Details :
 Uses and characteristics
Using Carbide Rotary Burrs is a effective way to realize mechanization in hand workoperations.In the industries of airplane,ship building,automoble,machinery,chemistry etc.Carbide Rotary Burrs can be widely used in machining iron,steel casting,carbon steel,alloy steel,stainless steel,hardened steel,copper aluminium etc.
● Machining various kinds of metal material including ≤HRC65 hardened steel.
● Instead of small emery wheels,without powder pollution.
● Increasing productivity of several ten times than using hand tools and three to five times than using small emery wheels
● Having long life of ten times than high speed steel burrs and fivty times than small emery wheels.
● Finish m achining various kinds of die cavities.
● Removing the burrs of the castings,forgings and the welding spatter on the weld assemblies.
● Chamfering angle,circular bead or flute on the mechanical components.
● Chamfering or burring the pipes.
● Polishing the impeller channel.
● Grinding the hole to an accurate shape.

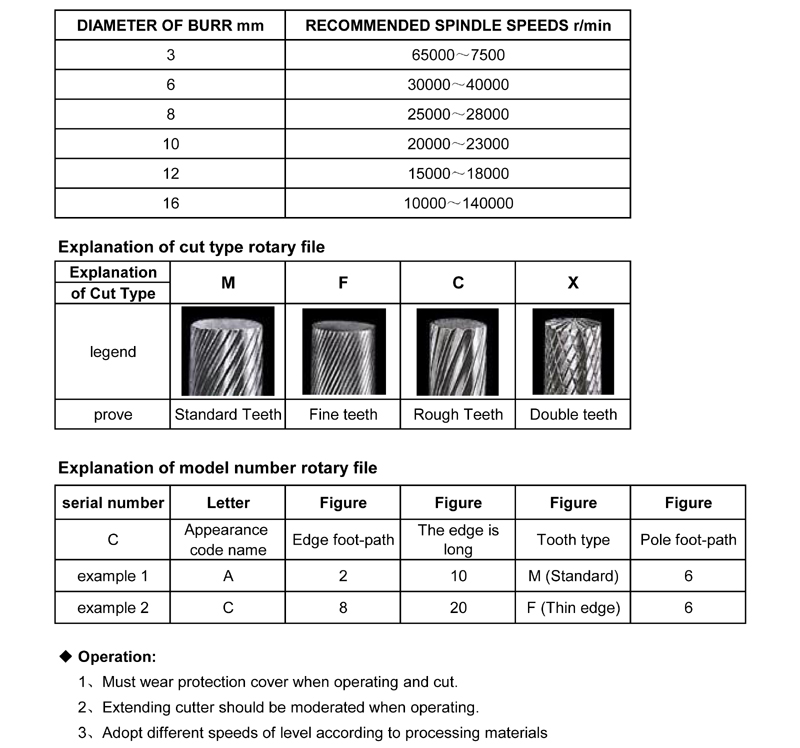

The machines which are used for Carbide Rotary Burrs are usually hand-held,powered either by compressed air or electricity.Be careful about mounting and handling the burr correctly. Only ar high speed,can carbide rotary burrs show their remarable performance.Recommended spindle speeds.

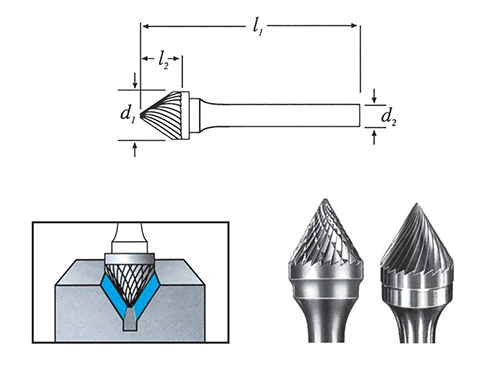

Taper 60° (shape J)
Item No. Cut dia Cut length Shank dia Total length a
J0303M06 3 2.6 6 55 60°
J0605M06 6 5.2 6 55 60°
J0807M06 8 6.9 6 55 60°
J1009M06 10 8.7 6 55 60°
J1210M06 12 10.4 6 55 60°
J1614M06 16 13.8 6 55 60°
