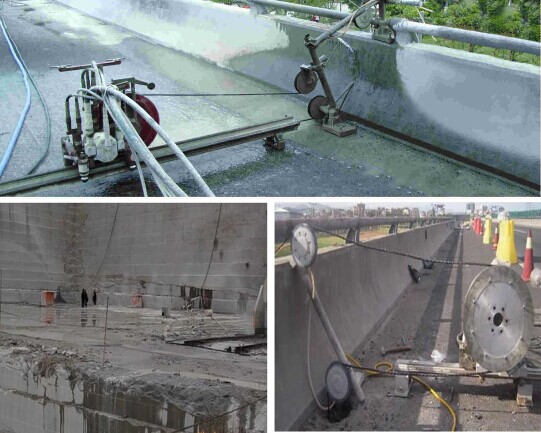

Reinforced concrete cutting rope saw: widely used in the field of construction, which can be used for cutting houses, bridges, large column piers, concrete pipes and underwater structures,
Has the following characteristics:
1. able to cut and remove large areas of irregular reinforced concrete buildings;
2. cutting and removing local buildings in any direction;
3. adapt to underwater and narrow space cutting;
4. construction vibration, noise, dust and other environmental pollution less;
5. can implement remote control cutting, construction safety.
Remark: Can provide different support designs and sizes beads according to the stone material.
Other specification are available upon customers’ requirements.
| 一、Specification and Performance parameters of concrete Diamond Wire: |
| MODEL NUMBER |
SPECIFICATION |
BEADS/M |
FIXED BY |
| SW115C4M40 |
Φ11.5 |
40 |
RUBBER+SPRING |
| SW110C4M40 |
Φ11.0 |
40 |
RUBBER+SPRING |
| SW110C4M44 |
Φ11.0 |
44 |
RUBBER+SPRING |
| SW105C4M40 |
Φ10.5 |
40 |
RUBBER+SPRING |
| |
|
|
|
|
| 二、Granite type and Cutting Performance： |
| CUTTING MATERIAL |
LINE SPEED |
CUTTING SPEED |
WIRE LIFE |
| Normal Concrete |
22-25 |
2.0-2.5 |
2-7 |
| Hard Reinforced Concrete |
20-22 |
0.8-2.0 |
1-2.5 |
| Steels |
18-20 |
0.5-1.0 |
0.5-1.2 |
| |
|
|
|
|
| 三、Diamond Beads and Specifications : |
| Specification |
Dia (mm) |
Working Layer (mm) |
Base ring length (mm) |
Manufacture Tech |
| SB115C4 |
Φ11.5 |
6.4 |
10 |
SINTERED |
| SB110C4 |
Φ11.0 |
6.4 |
10 |
SINTERED |
| SB105C4 |
Φ10.5 |
6.4 |
10 |
SINTERED |
