Uses and characteristics of Carbide Rotary Burrs:
Using Carbide Rotary Burrs is a effective way to realize mechanization in hand workoperations.In the industries of airplane,ship building,automoble,machinery,chemistry etc.Carbide Rotary Burrs can be widely used in machining iron,steel casting,carbon steel,alloy steel,stainless steel,hardened steel,copper aluminium etc.
● Machining various kinds of metal material including ≤HRC65 hardened steel.
● Instead of small emery wheels,without powder pollution.
● Increasing productivity of several ten times than using hand tools and three to five times than using small emery wheels
● Having long life of ten times than high speed steel burrs and fivty times than small emery wheels.
● Finish m achining various kinds of die cavities.
● Removing the burrs of the castings,forgings and the welding spatter on the weld assemblies.
● Chamfering angle,circular bead or flute on the mechanical components.
● Chamfering or burring the pipes.
● Polishing the impeller channel.
● Grinding the hole to an accurate shape.

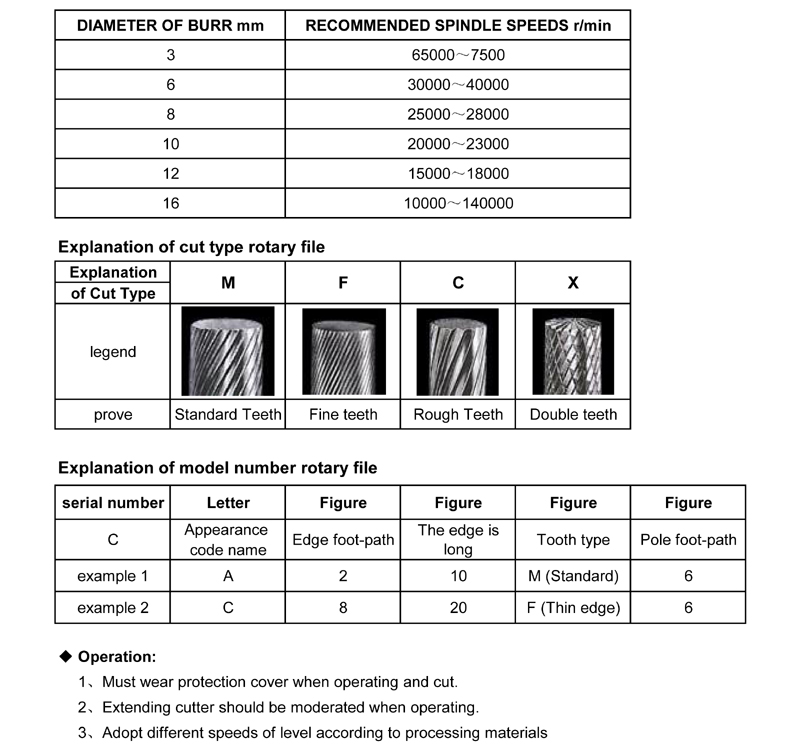

The machines which are used for Carbide Rotary Burrs are usually hand-held,powered either by compressed air or electricity.Be careful about mounting and handling the burr correctly. Only ar high speed,can carbide rotary burrs show their remarable performance.Recommended spindle speeds.

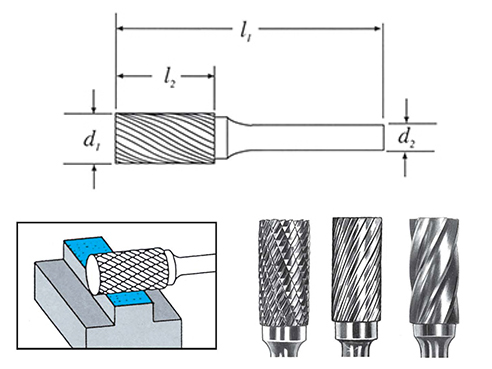

| Cylinder(shape A) |
| Item No. |
Cut dia |
Cut length |
Shank dia |
Total length |
| A0210M06 |
2 |
10 |
6 |
55 |
| A0314M06 |
3 |
14 |
6 |
55 |
| A0414M06 |
4 |
14 |
6 |
55 |
| A0616M06 |
6 |
16 |
6 |
65 |
| A0820M06 |
8 |
20 |
6 |
65 |
| A1020M06 |
10 |
20 |
6 |
65 |
| A1225M06 |
12 |
25 |
6 |
65 |
| A1625M06 |
16 |
25 |
6 |
65 |
