Cylinder with end cut (shape B)

Cylinder with end cut (shape B)
Product name : Cylinder with end cut (shape B)
Item : Rotary Burrs -B
Details :
 Uses and characteristics of Carbide Rotary Burrs:
Using Carbide Rotary Burrs is a effective way to realize mechanization in hand workoperations.In the industries of airplane,ship building,automoble,machinery,chemistry etc.Carbide Rotary Burrs can be widely used in machining iron,steel casting,carbon steel,alloy steel,stainless steel,hardened steel,copper aluminium etc.
● Machining various kinds of metal material including ≤HRC65 hardened steel.
● Instead of small emery wheels,without powder pollution.
● Increasing productivity of several ten times than using hand tools and three to five times than using small emery wheels
● Having long life of ten times than high speed steel burrs and fivty times than small emery wheels.
● Finish m achining various kinds of die cavities.
● Removing the burrs of the castings,forgings and the welding spatter on the weld assemblies.
● Chamfering angle,circular bead or flute on the mechanical components.
● Chamfering or burring the pipes.
● Polishing the impeller channel.
● Grinding the hole to an accurate shape.

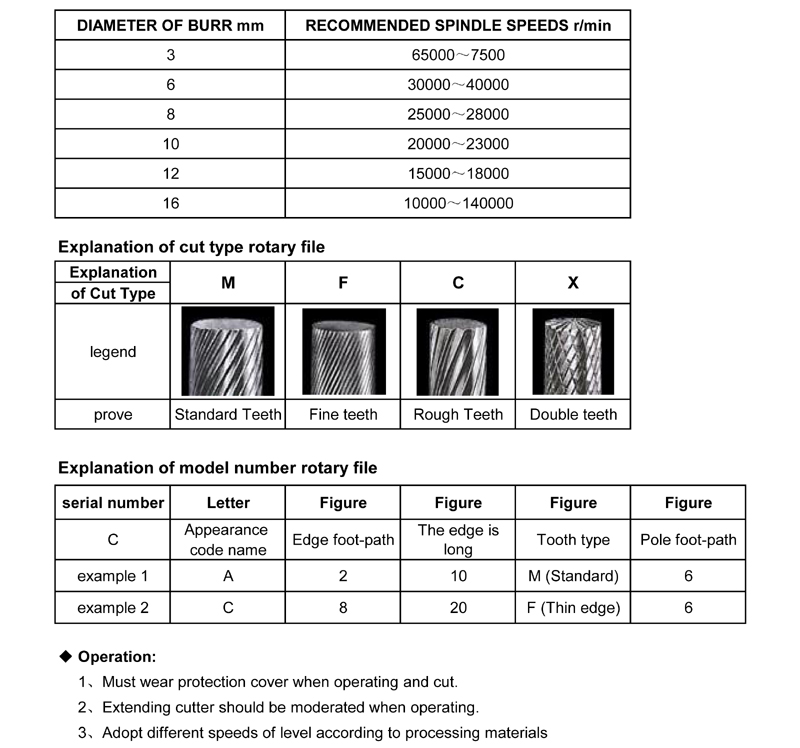

The machines which are used for Carbide Rotary Burrs are usually hand-held,powered either by compressed air or electricity.Be careful about mounting and handling the burr correctly. Only ar high speed,can carbide rotary burrs show their remarable performance.Recommended spindle speeds.

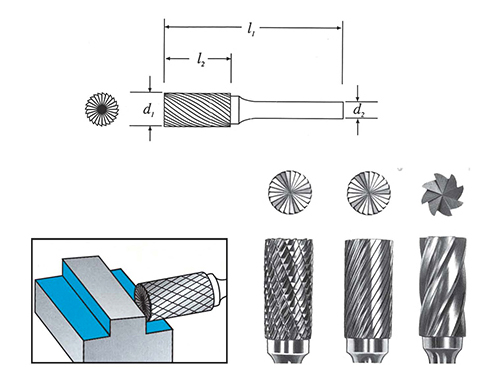

Cylinder with end cut (shape B)
Item No. Cut dia Cut length Shank dia Total length
B0210M06 2 10 6 55
B0314M06 3 14 6 55
B0414M06 4 14 6 55
B0616M06 6 16 6 65
B0820M06 8 20 6 65
B1020M06 10 20 6 65
B1225M06 12 25 6 65
B1625M06 16 25 6 65
