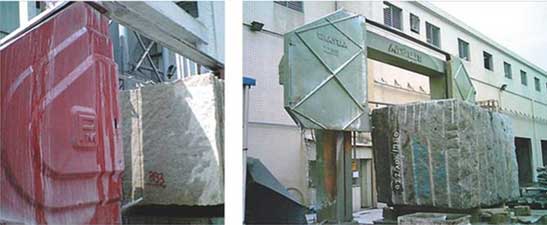

Granite Block squaring Diamond Wire Saw: Could be used for Granite block squaring, trimming and cut off the crust out of blocks.
Advantage as follows:
1) Allow greater sawing height than the large blades.
2) Thinner cutting sew spacer and more precise cutting( cut accurately with small inner space).
3) By virtue of it reliability, adjust the cutting techniques according to different stone material.
4) Compare to the blade cutting, it makes lower noise and less pollution.
Remark: Can provide different support designs and sizes beads according to the stone material.
Other specification are available upon customers’ requirements.
| 一、Specification and Performance parameters of granite quarry Diamond Wire: |
| MODEL NUMBER |
SPECIFICATION |
BEADS/M |
FIXED BY |
| SW110G2P40 |
Φ11.0 |
40 |
PLASTIC |
| SW110G2P37 |
Φ11.0 |
37 |
PLASTIC |
| SW105G2P37 |
Φ10.5 |
37 |
PLASTIC |
| SW088G2P37 |
Φ8.8 |
37 |
PLASTIC |
| |
|
|
|
|
| 二、Granite type and Cutting Performance： |
| CUTTING MATERIAL |
LINE SPEED |
CUTTING SPEED |
WIRE LIFE |
| Low rigidity Granite |
24-28 |
60-100 |
15-25 |
| Mid-rigidity Granite |
22-26 |
40-60 |
10-17 |
| Hard Granite |
20-24 |
25-45 |
8-12 |
| Abrasive Granite |
24-28 |
60-100 |
15-25 |
| |
|
|
|
|
| 三、 Diamond Beads and Specifications : |
| Specification |
Dia (mm) |
Working Layer (mm) |
Base ring length (mm) |
Manufacture Tech |
| SB110G2 |
Φ11.0 |
6.4 |
10 |
SINTERED |
| SB105G2 |
Φ10.5 |
6.4 |
10 |
SINTERED |
| SB088G2 |
Φ8.8 |
6 |
9.5 |
SINTERED |
