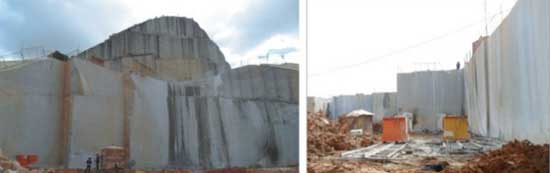

Granite quarry Diamond Wire could be widely used for all kinds of granite quarrying and for granite block squaring.
Advantage of Diamond Wire for Granite quarry:
The diamond wire quarrying technique can highly improve the granite quarrying efficiency, reduce the waste of stone resource, and can quarrying large blocks. At the same time, it can be operated safely and it is good for environment protection.
The main specialties of diamond wire are as follows:
1. Could be used for great area granite quarrying and get the regular blocks.
2. To get high percentage of forming large blocks, low waste of stone resource.
3. High production efficiency
4 .Safety operation, low- noise, low- dust and friendly surroundings
5. Low quarrying cost.
Remark: Can provide different support designs and sizes beads according to the stone material.
Other specification are available upon customers’ requirements.
| 一、Specification and Performance parameters of granite quarry Diamond Wire: |
| MODEL NUMBER |
SPECIFICATION |
BEADS/M |
FIXED BY |
| SW115G1R38 |
Φ11.5 |
38 |
RUBBER |
| SW115G1R40 |
Φ11.5 |
40 |
RUBBER |
| SW110G1R40 |
Φ11.0 |
40 |
RUBBER |
| |
|
|
|
|
| 二、Granite type and Cutting Performance： |
| CUTTING MATERIAL |
LINE SPEED |
CUTTING SPEED |
WIRE LIFE |
| Low rigidity Granite |
24-28 |
4-9 |
20-30 |
| Mid-rigidity Granite |
22-24 |
3-6 |
12-20 |
| Hard Granite |
18-22 |
2-4 |
6-12 |
| Abrasive Granite |
26-30 |
4-9 |
15-25 |
| |
|
|
|
|
| 三、Diamond Beads and Specifications : |
| Specification |
Dia (mm) |
Working Layer (mm) |
Base ring length (mm) |
Manufacture Tech |
| SB115G1 |
Φ11.5 |
6.4 |
10/11.5 |
SINTERED |
| SB105G1 |
Φ10.5 |
6.4 |
10 |
SINTERED |
| |
|
|
|
|
The advantages of Rubberized diamond wire for Granite quarrying:
1) The rubber adheres better to the steel cable and the diamond beads, so that it can withstand the abrasive impact of terrible working condition during the quarrying, in particular when the wire takes up the cutting of smaller radius curvature.(like in the beginning and the end of the quarry cuts).
2) The rubber has good thermal endurance(temperature resistance) so it can withstand the increase temperature caused by badly controlled water spraying, which often happened in a quarry, like, could be worked with insufficient cooling water.
3)The wire fixed by rubber has strong flexibility, which could reduces the irregular wearing of the diamond beads( ovalization phenomenon) or cut in one side phenomenon.
4) Normally, 37-75kw wire saw machine are most used for granite quarry, water consumption could be controlled between 25-50L/min according to the cutting area. |
