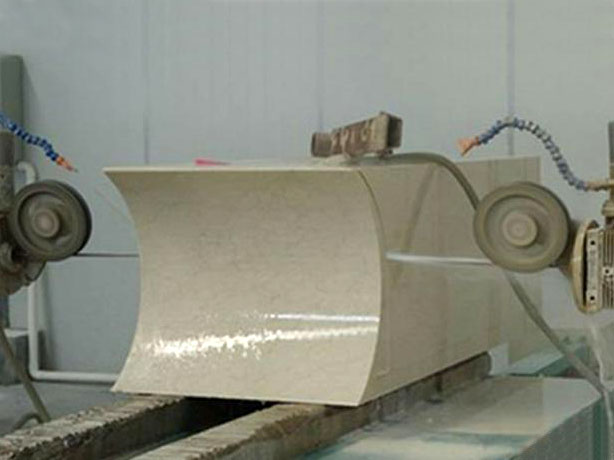

Marble profiling diamond wire: to be widely used for marble block profiling, circular slabs cutting and special shape surface processing etc.
It has the following specialties:
1) Stable and highly effective
2) To get the even and smooth slab
3) Accurate sizes with small inter-space
4) To involve always low power consume and lesser raw material waste
Remark: Can provide different support designs and sizes beads according to the stone material. Other specification are available upon customers’ requirements.
| 一、Specification and Performance parameters of Marble quarry Diamond Wire: |
| MODEL NUMBER |
SPECIFICATION |
BEADS/M |
FIXED BY |
| SW088M3P33 |
Φ8.8 |
33 |
PLASTIC |
| |
|
|
|
|
| 二、Marble type and Cutting Performance： |
| CUTTING MATERIAL |
LINE SPEED |
CUTTING SPEED |
WIRE LIFE |
| Low rigidity Marble |
30-35 |
100-150 |
40-60 |
| Mid-rigidity Marble |
32-35 |
70-100 |
30-40 |
| Hard Marble |
28-32 |
60-80 |
25-30 |
| |
|
|
|
|
| 三、Diamond Beads and Specifications : |
| Specification |
Dia (mm) |
Working Layer (mm) |
Base ring length (mm) |
Manufacture Tech |
| SB088M3 |
Φ8.8 |
6 |
9.5 |
SINTERED |
